• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Glass, solar absorbing, tinted
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lbs. (Requires (YEY) Tires, rear 225/70R19.5G highway blackwall Pirelli, Max Axle Load: 15,000 lbs. or (YEZ) Tires, rear 225/70R19.5G traction blackwall Pirelli, Max Axle Load: 15,000 lbs.) (STD)
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Wheel, 19.5" x 6.75", spare, aluminum, 8-holes temporary mounted on frame. Dura-Bright finish is on the outside of the wheel.
• Tire, Spare 225/70R19.5G Highway blackwall Pirelli Includes (V33) Rim Wrench and handle only tool kit.)
• Fog lamps, front, halogen
• Paint, solid

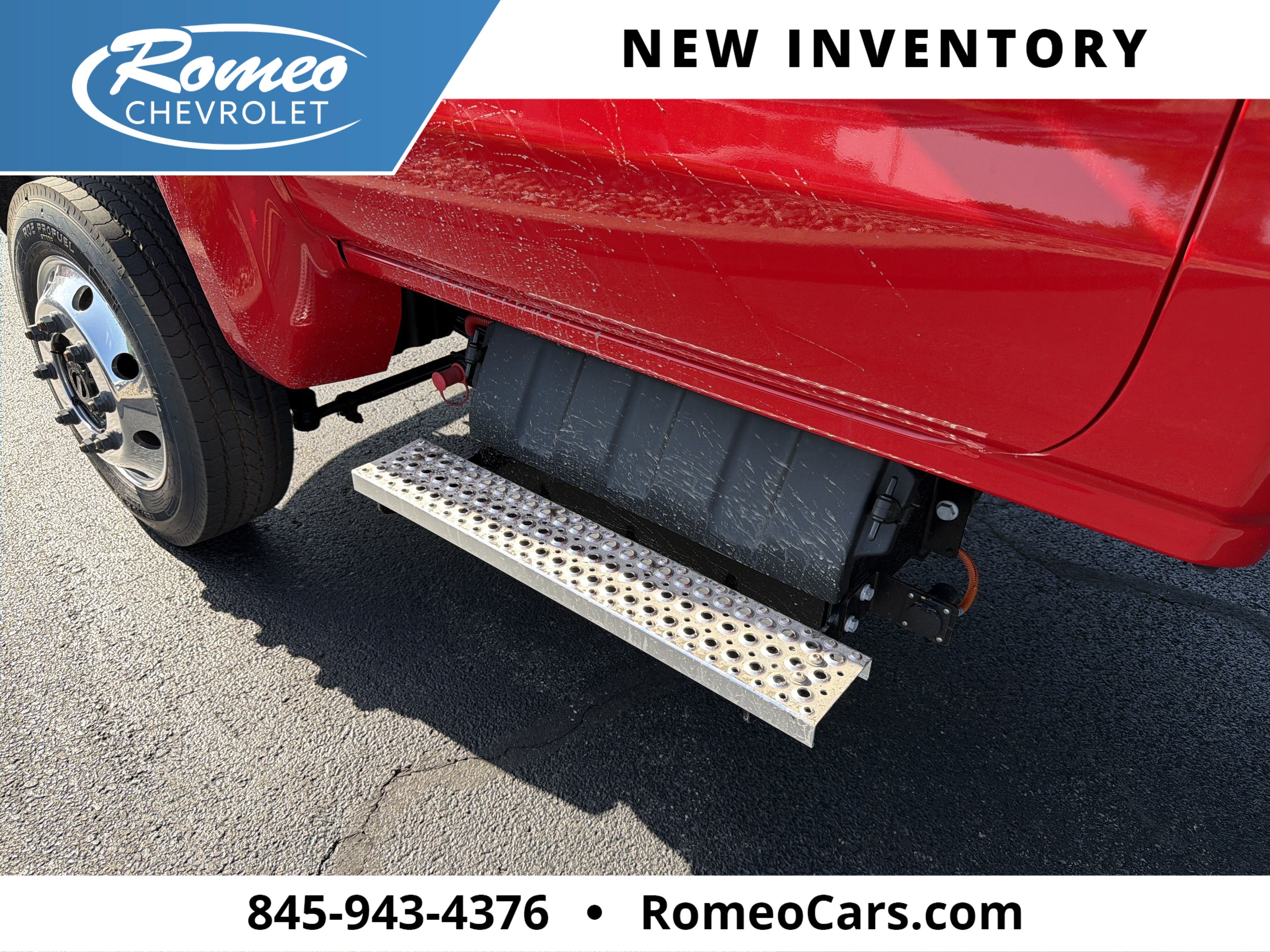

• Assist Steps, aluminum
• Red Hot
• Mirror caps, chrome

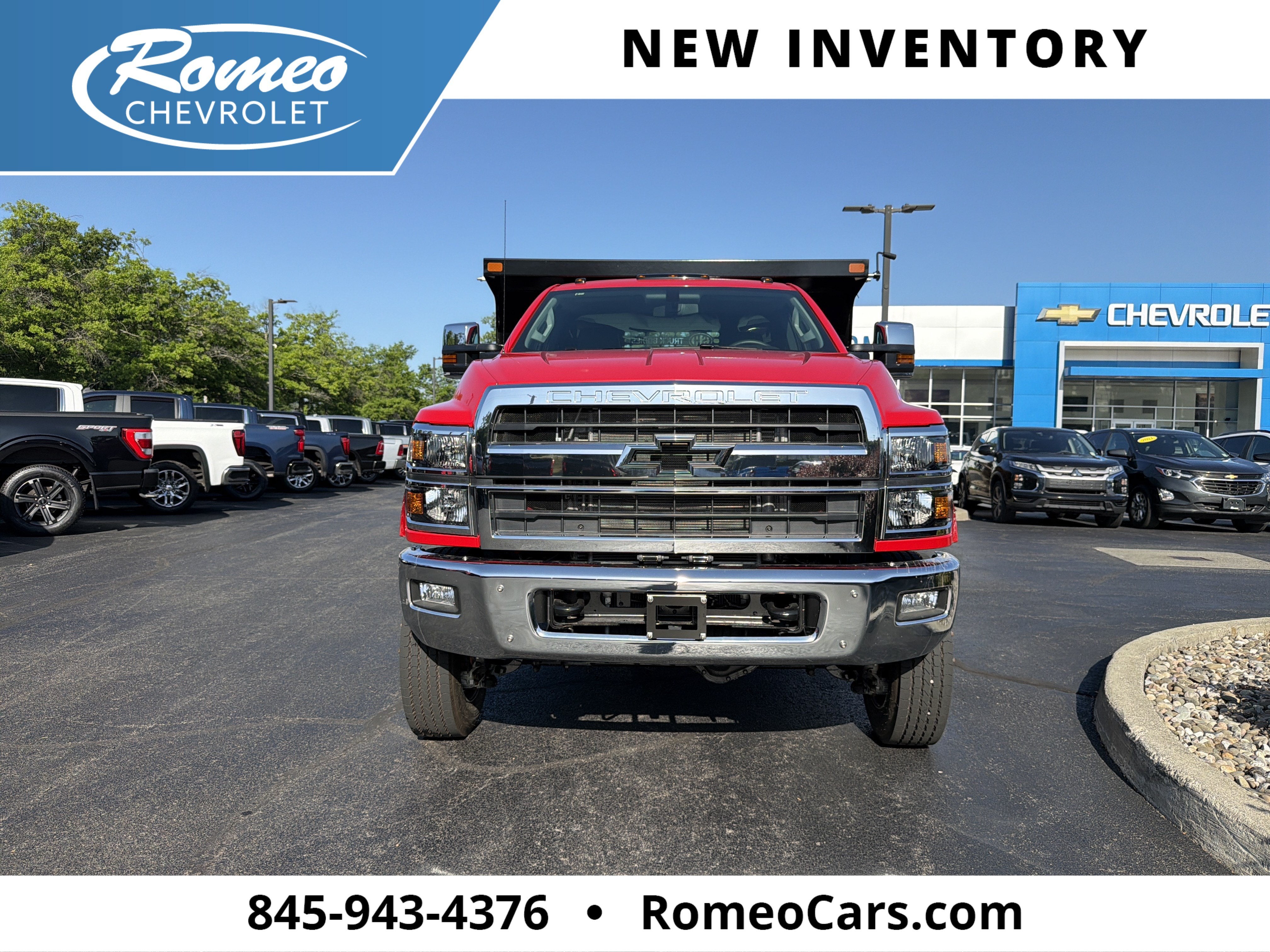

• Grille, chrome
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lbs. (STD)
• Bumper, front chrome
• Door handles, outside, chrome

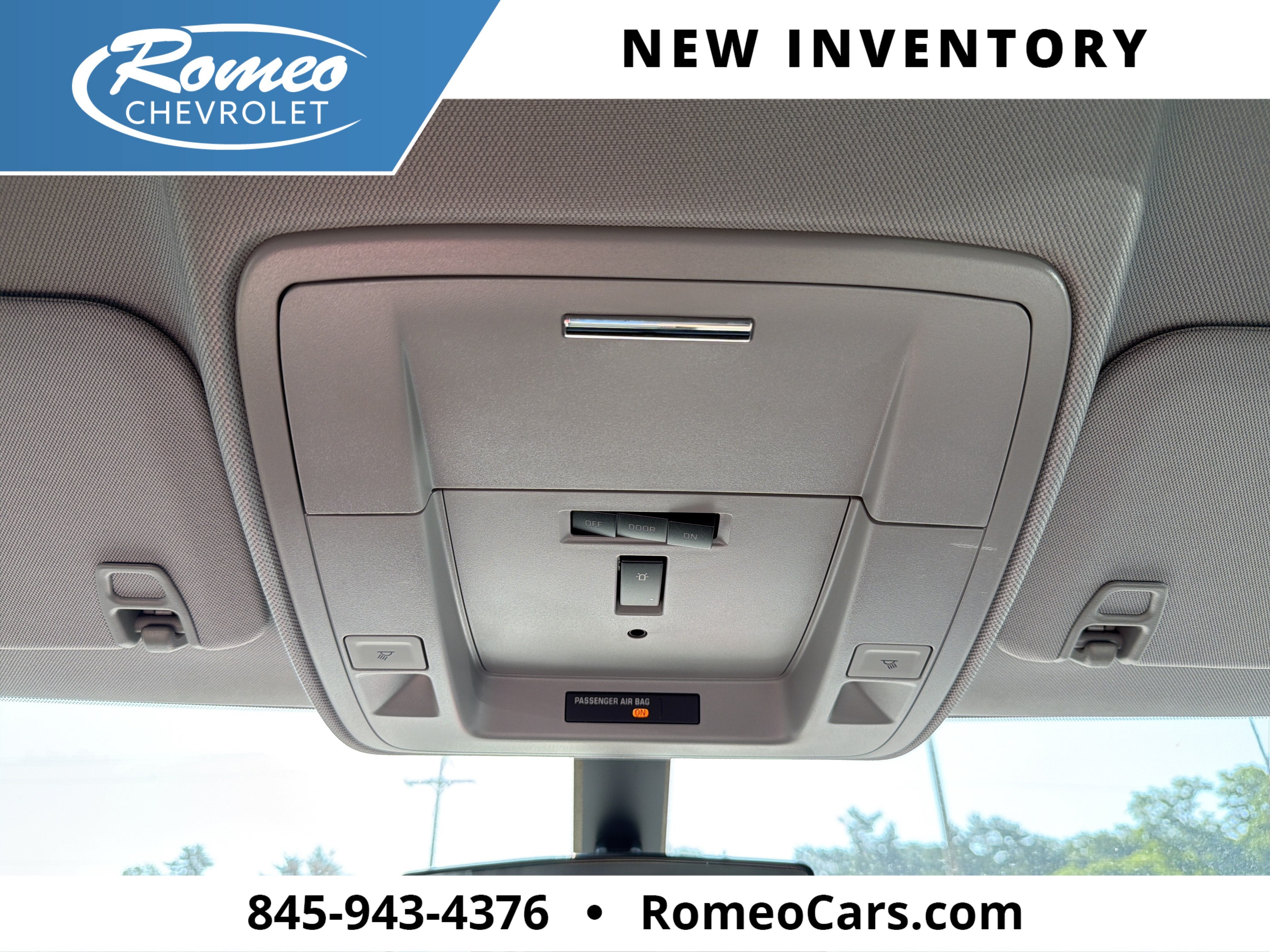

• Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Auxiliary harness, 3' for headlamps and turn signals
• Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Tires, rear 225/70R19.5G traction blackwall Pirelli Max Axle Load: 15,000 lbs.

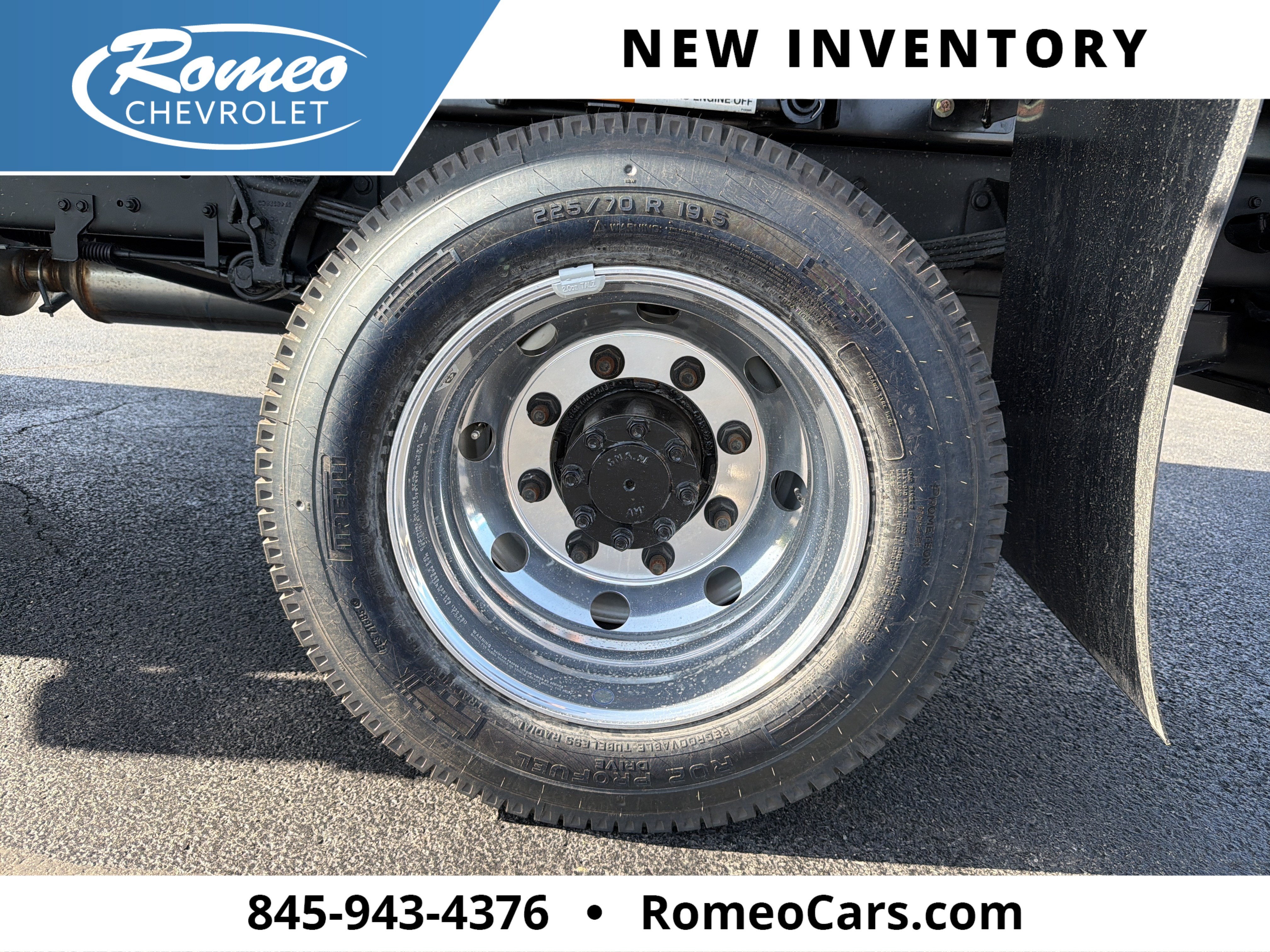

• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted Dura-Bright finish is on the outside of the wheel
• License plate kit, front

• Seat Belt, Black
• Visors, driver and front passenger, vinyl

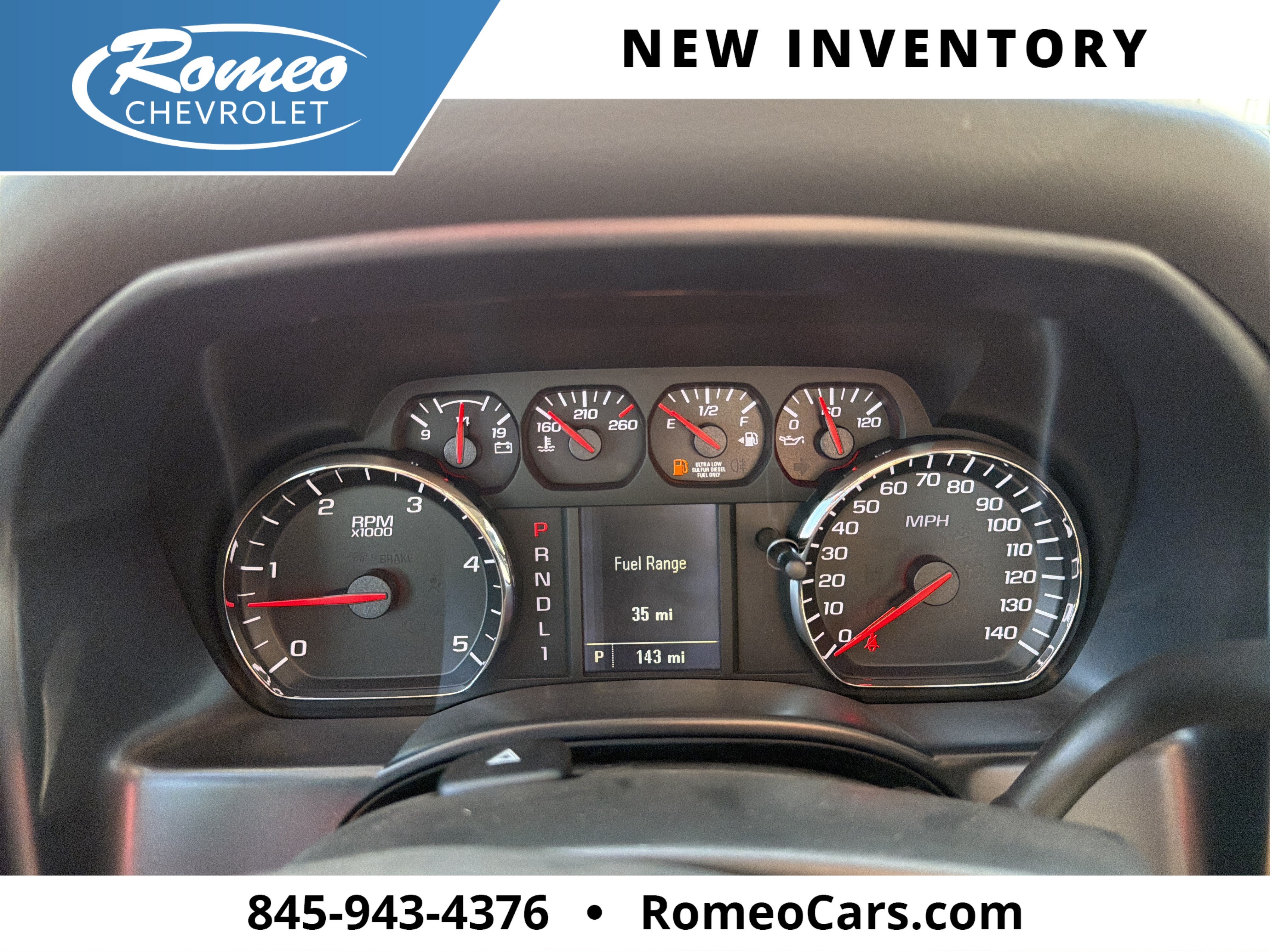

• Driver Information Center, 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
• Seat trim, Vinyl
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl

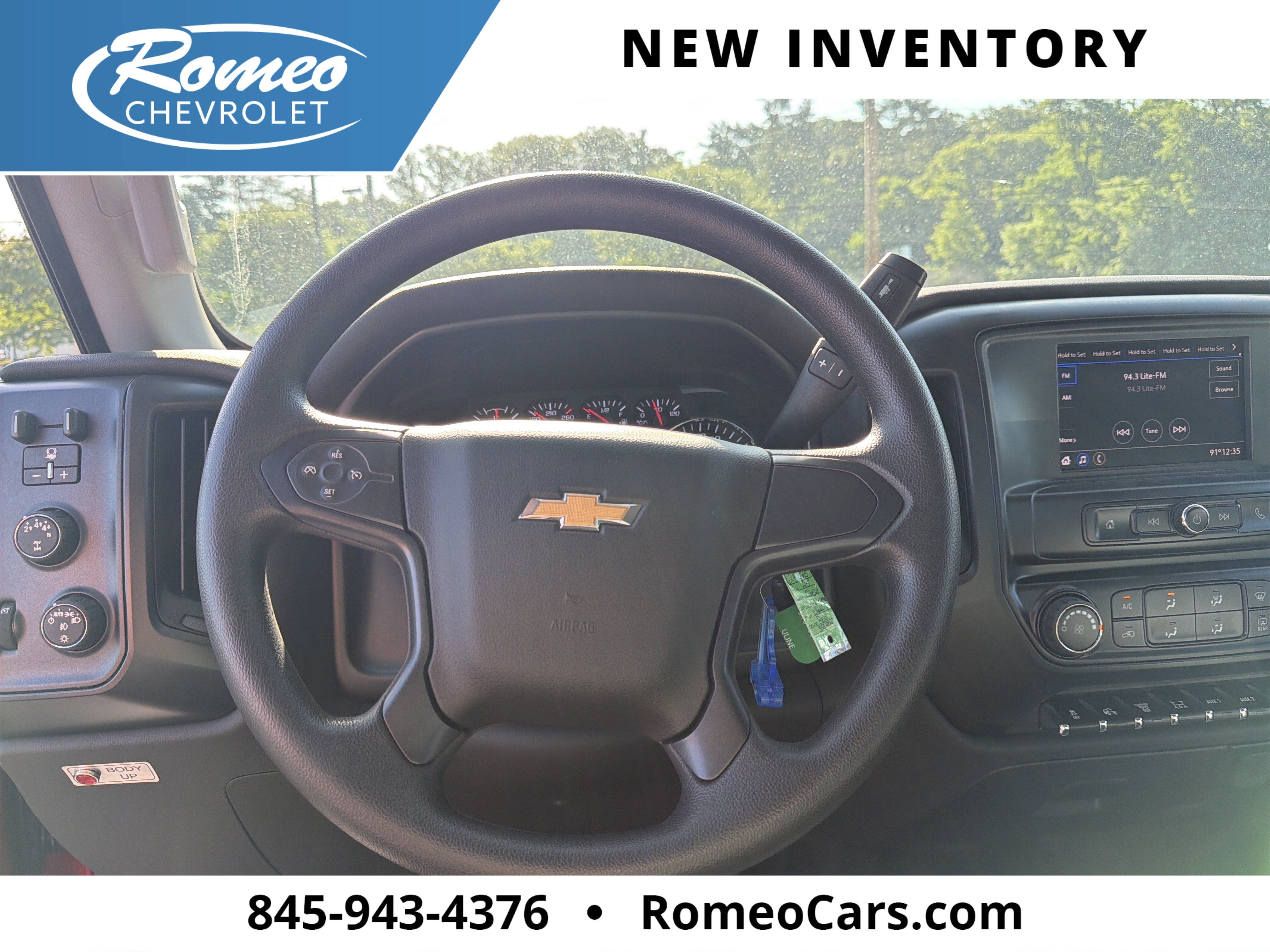

• Steering wheel, urethane

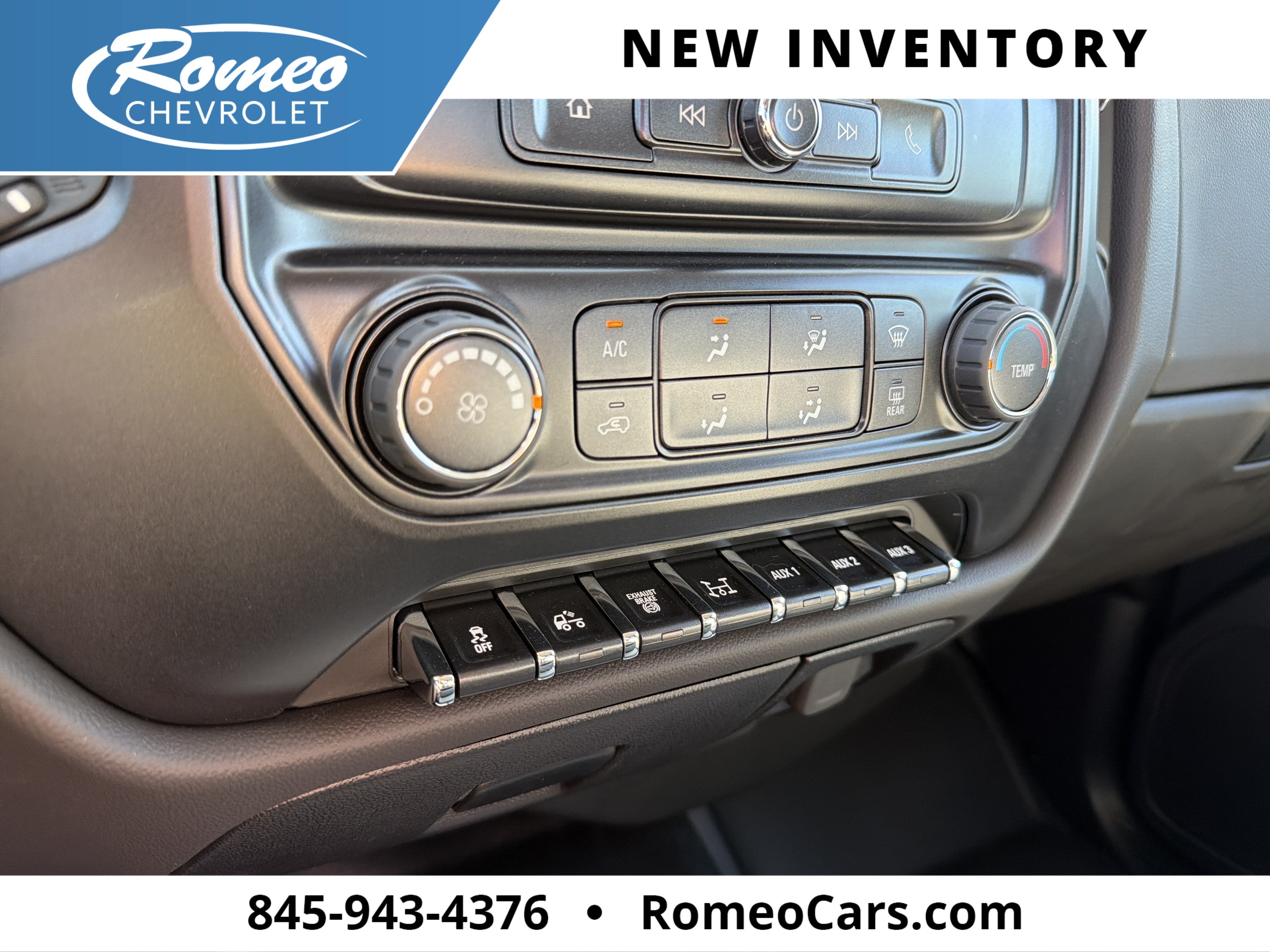

• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Mirror, inside rearview manual day/night

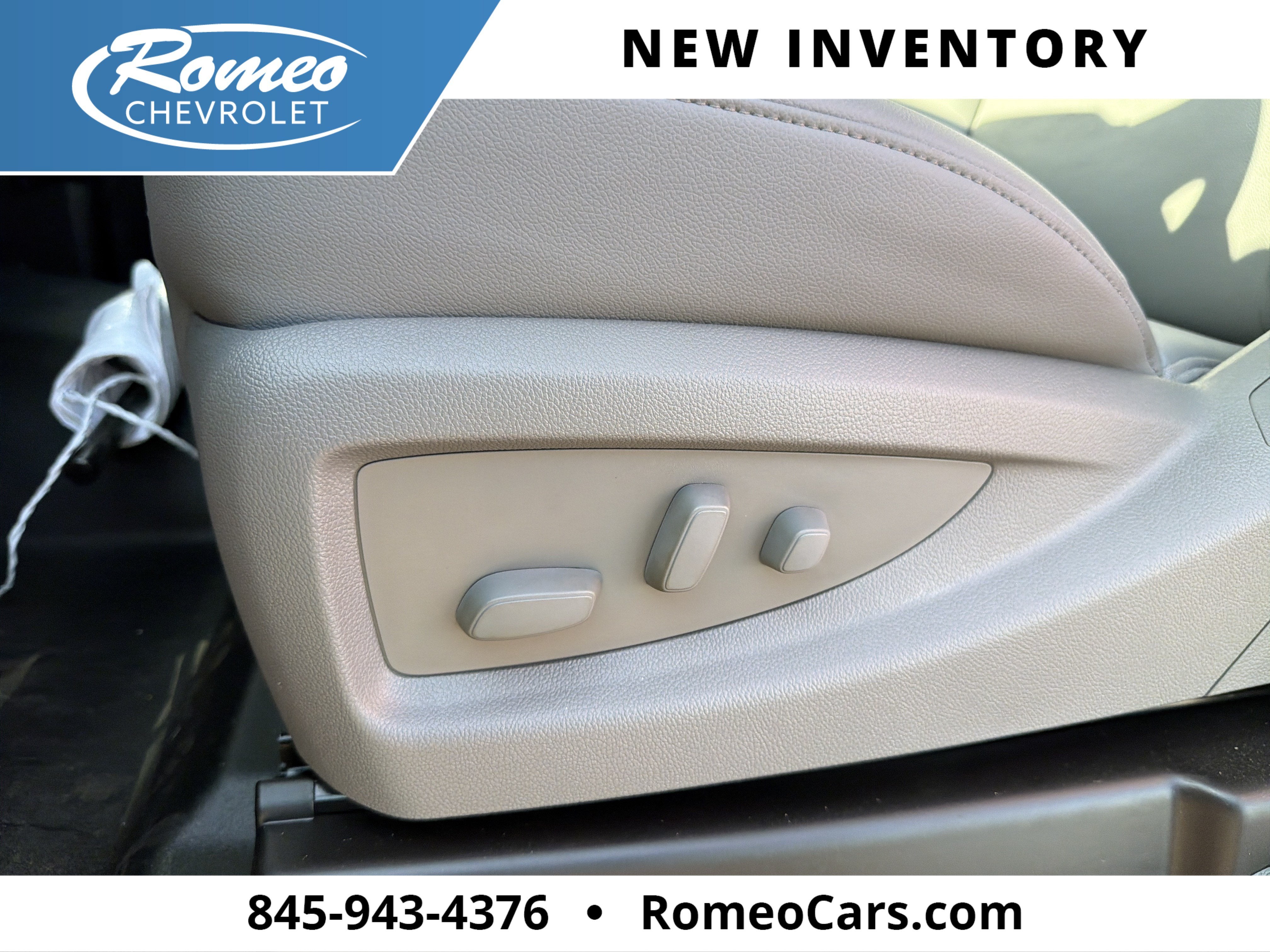

• Seat adjuster, driver 10-way power
• Defogger, rear-window electric
• Windows, power with driver express up and down and express down on all other windows
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Power outlet, 110-volt AC

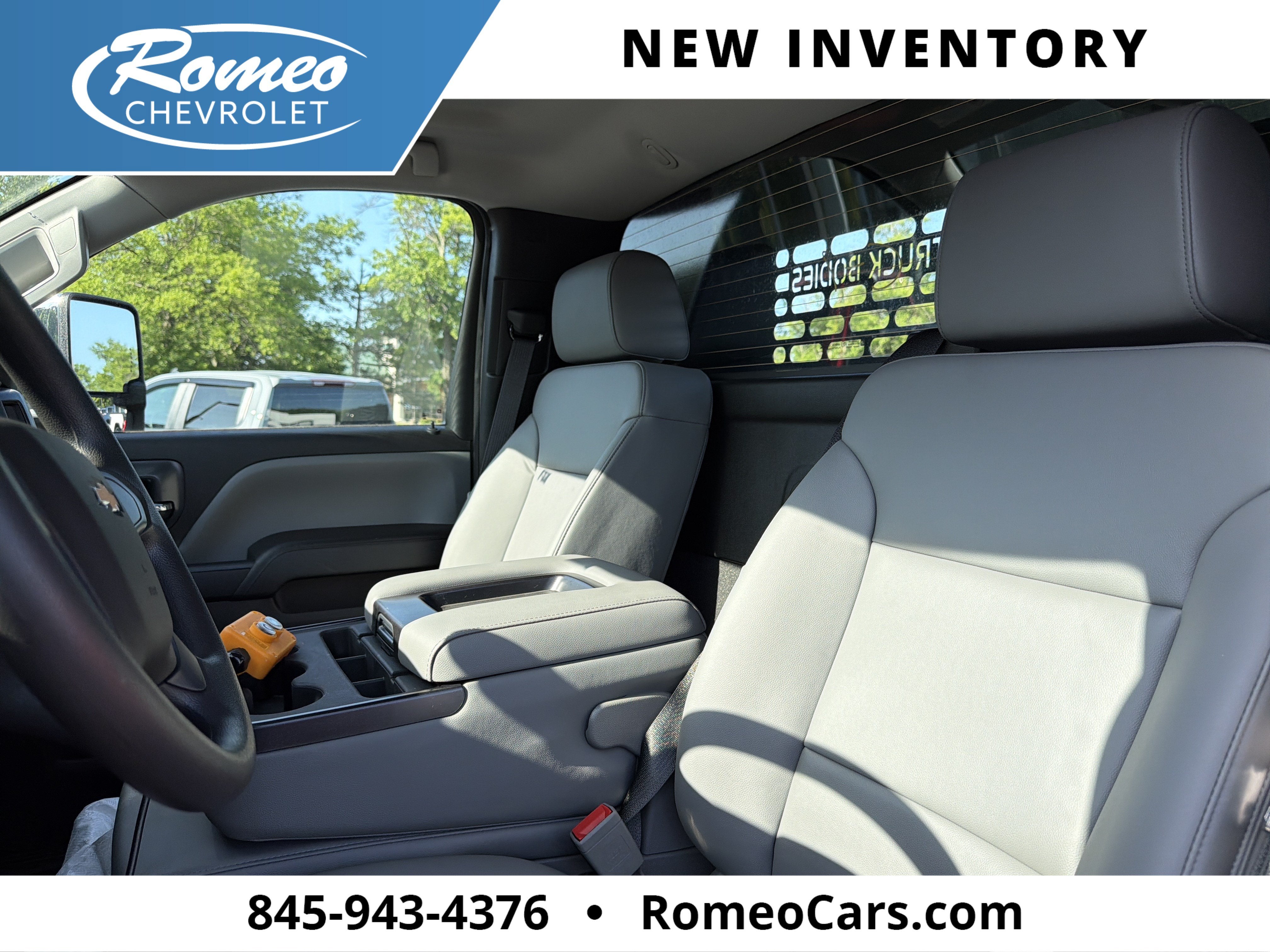

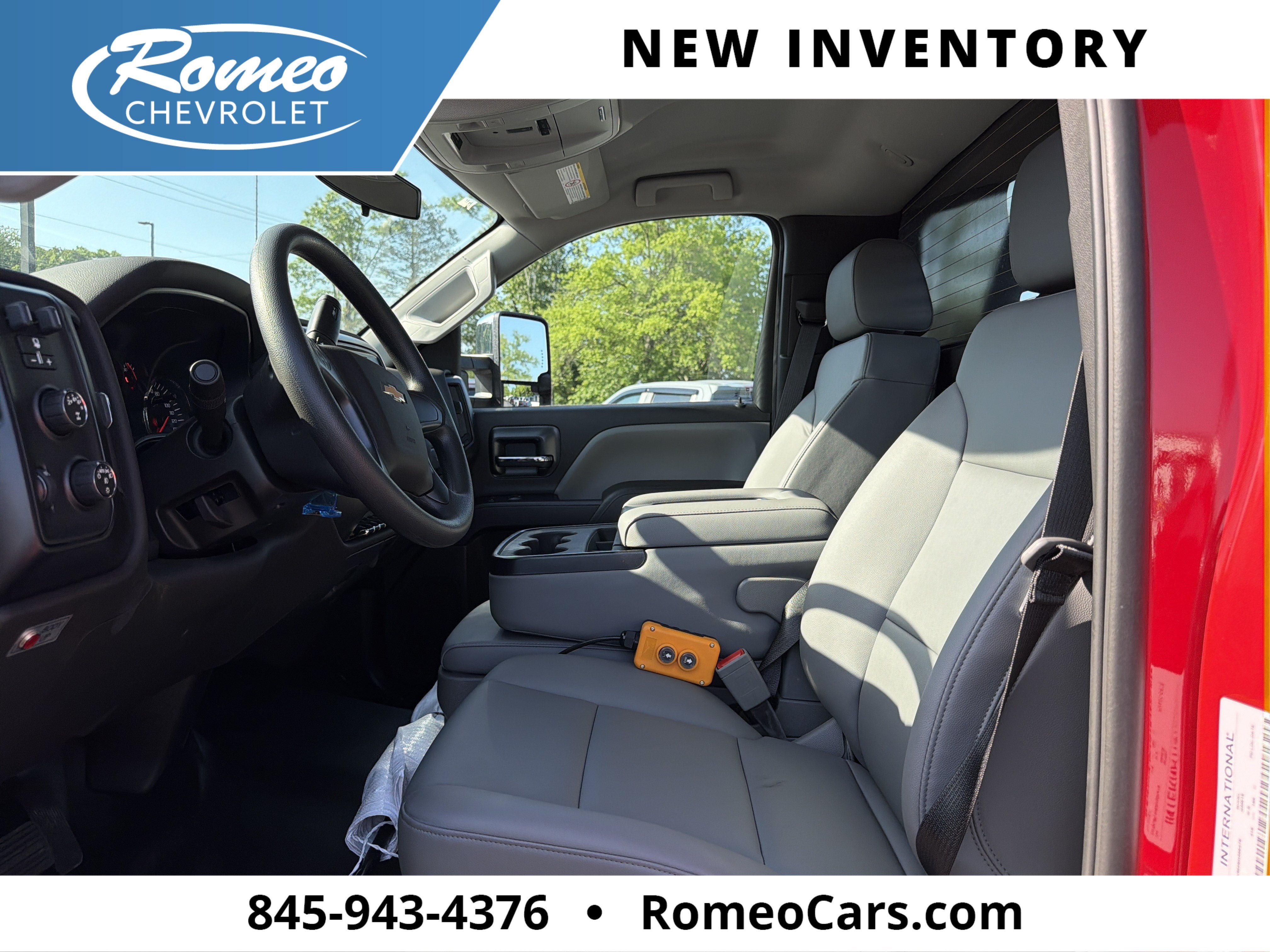

• Seats, front 40/20/40 split-bench, cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
• Remote Keyless Entry
• Wiring harness accessory for 9L7 wiring to junction block Includes connector and blunt cut wires.

• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165" or (ER2) 189". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Emissions, 50 state certification
• Exhaust system, right side exit, behind rear wheels (Requires (ED9) 165" wheelbase.)
• Front suspension, 7,500 lbs. (3,402 kg) multi-leaf, includes shock absorbers
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Emissions, USA 50 State certified
• Incomplete vehicle
• Fuel, diesel B20
• Wheelbase, 165" (419.1 cm), 84" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust, behind the rear wheels.) (STD)
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Rear axle, 4.30 ratio Max road speed: 79 MPH
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Front axle, 7,500 lbs, Dana Spicer 60-256, single-reduction, front driving
• GVWR, 22,500 lbs. (10,206 kg)
• Recovery hooks, front, frame-mounted, Black
• Rear axle, 15,500 lb. (7,031 kg)
• Rear suspension, 15,500 lbs. (7,031 kg) multi-leaf, vari-rate
• Battery, top post threaded, battery jump start stud (located on battery box)
• 26,000 lbs. GCWR (11,793 kg)
• Tool kit, Rim Wrench and handle only
• Wheelbase, 165" (419.1 cm), 84" CA (STD)
• Rear axle, 4.30 ratio Max road speed: 79 MPH
• Alternators, dual, 150 amps and 220 amps each
• 6500 HD Series
• Skid Plate, steel, frame-mounted, protects the transfer case from the ground

• WT Preferred Equipment Group includes standard equipment
• Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals, (KW5) 220-amp alternator, forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

• Fleet Processing Option

• Daytime Running Lamps, with automatic exterior lamp control

• Horn, Trumpet Style, single-note
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

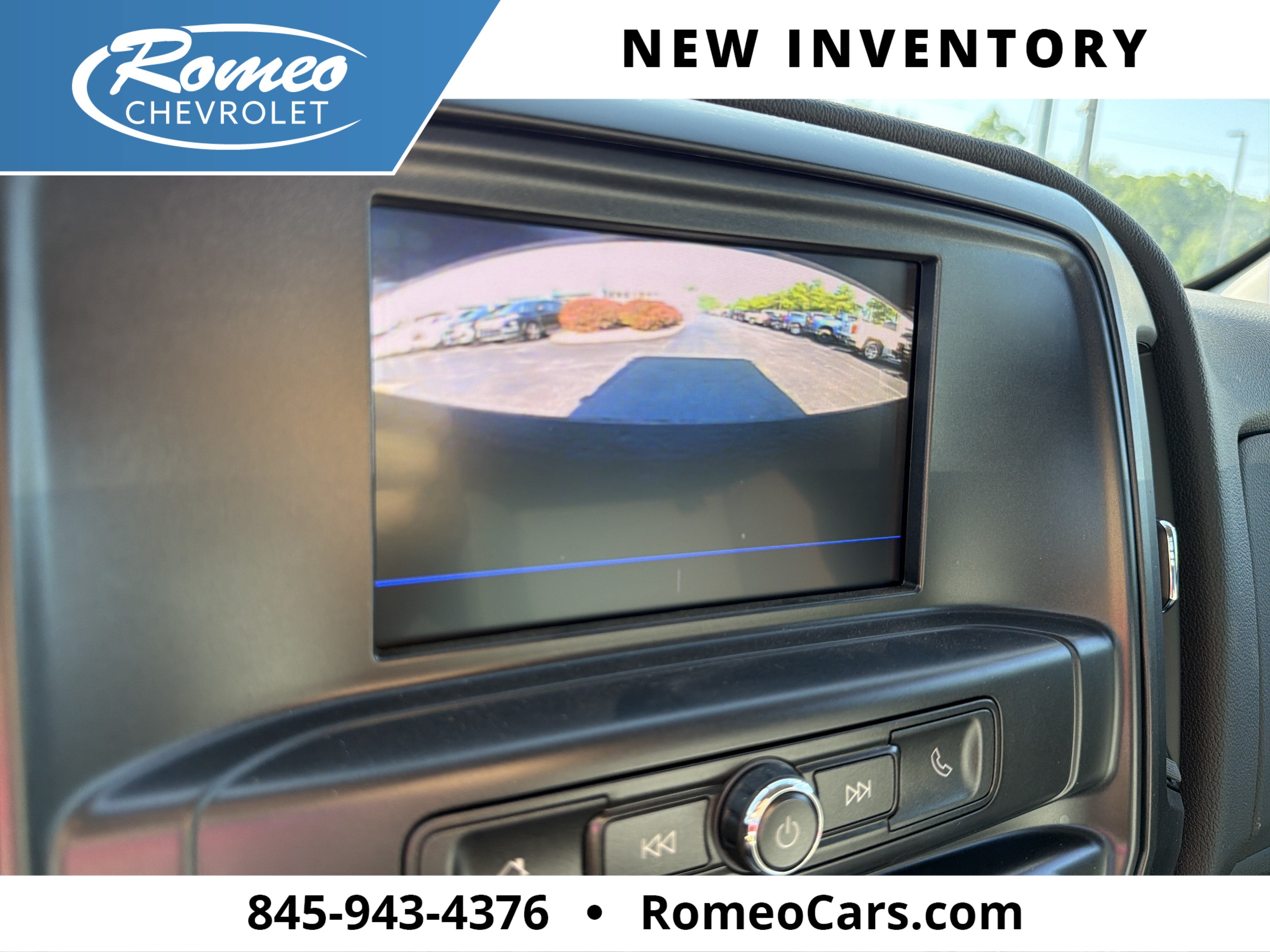

• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Backup alarm (Includes (SFW) SEO Calibration for backup alarm.

• Brake, parking, driveline park brake system
• Traction control
• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist

Snow Plow Prep Package

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 40 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
